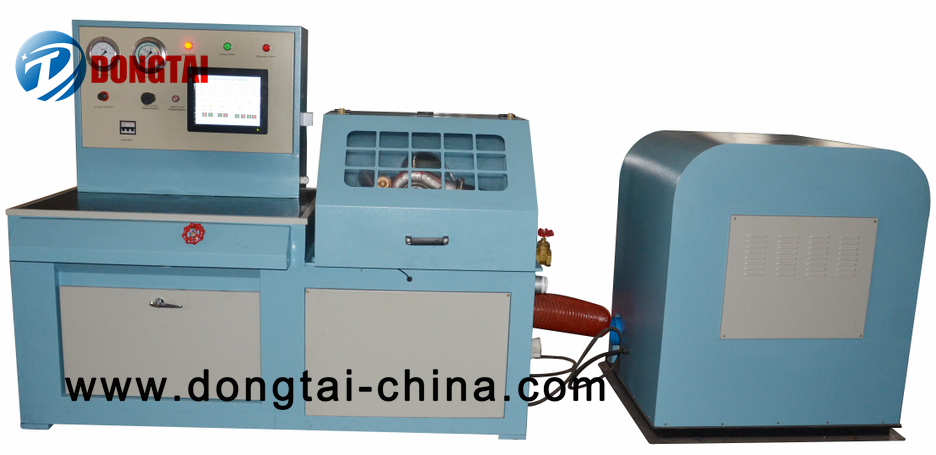

DT-2C Model Automobile Turbocharge
Content
1.Function IntroductionThis test bench is applicable for testing the performance of turbochargers on various models of vehicles and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values.
It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger, and print the test result and wave form curve with a printer. It achieves comprehensive dynamic test and data record of turbocharger.
2. Technical Parameter
lPower: AC380V 50HZ
lPower of airflow generator: 5.5KW (made to order)
lFrequency converter power: 7.5KW
lRPM of airflow generator: 0--20000r/min
lMaximum air pressure of airflow generator: 5KPa
lMaximum flow rate of airflow generator: 1500m3/h
lPower of oil pump motor: 370W
lRated pressure of oil pump: 0-1.6MPa
lMaximum displacement of oil pump: 6L/min
