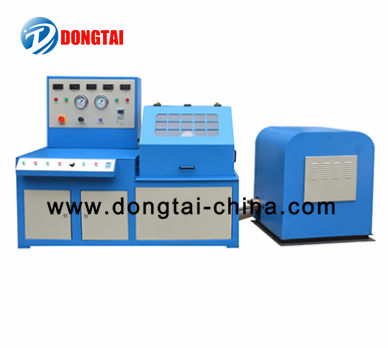

DT-2 Model Automobile Turbocharger Test Bench
Content
1.Function IntroductionThis test bench is applicable for testing performance of turbocharger on various models truck engines and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger and display measured data by digital instrument.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values
It can be matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models turbochargers.
2.Technical Parameter
lPower: AC AC380V 50HZ (made to Measure)
lPower of airflow generator: 5.5KW (made to order)
lFrequency converter: 7.5KW
lRPM of airflow generator: 0--20000r/min（If it requires high speed, it will be customized.）
lMaximum air pressure of airflow generator: 5KPa
Maximum flow of of airflow generator: 1500cbm/h
Power of oil pump: 370W
Rated pressure of oil pump: 0-1.6Mpa
Maximum displacement of oil pump: 6L/min
